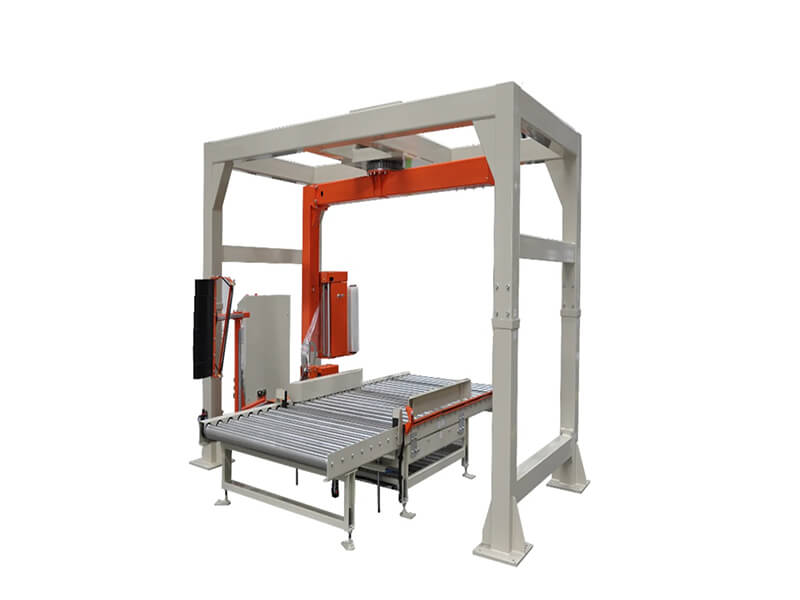

Full Automatic Pallet Wrapping Machine
Full Automatic Pallet Wrapping Machine
Main Features
1, project introduction:The conveying roller will transport the pallet of productsto the location of rotary wrapping machine, automatically start wrapping till to finish packing .and then film is cut automatically, after it, the pallets will be transported by conveying rollers. The procedure of next will be alike.
2, main technical data2.1 technical date:Pallet size: 2200×1500mmPacking capacity:20 pallet/hRequirement for packing: from one-third of 15cm pallet to the overtop of the load but not exceed 15cm.Site: Indoor and proper temperature zoon.Rotary speed: 15rpm(max)2.2,packing materialStretch film:3 inched diameter of the core,500mm in width, the diameter of the film is 260mm, film thickness:20-35μm2.3, site preparationCompressed air source:pressure: 0.5-0.7 MPaquality: no oil and water power supplyMain power: 380v( /- 10%)/3 phase/50Hz( /- 1Hz)Power capacity: ≈3kw
3, supply range3.1 Automatic online turntable film wrapping machine(1 set)3.1.1 Turntable arm driving system(1set )Motor & inverter, speed adjusted, and brake.Turntable speed motor: SEWPower: P=1.1KWTurntable speed:n=10-15rpm(speed adjusted and brake)3.1.2 film carriage parts(1set)Carriage lifting driving by chains, stable.Carriage lifting motor:Access door for film thread: patentRatio of pre-strech1:1 : 2.5Motor power: 0.37kwLifting motor: SEW3.1.3 safety guard fixture(1set)There is a safety guard railing around the auto film attached and cut, when sb go into this area, the machine will stop workingSize of safety guard( standard by the drawing)Ladder equipped with a machine for maintenanceThere is a safety guard on the top also3.1.4 film carriage (1 set)Photoeye set for height measurement.AC motor drivingAC motor power capacity:0.37KWPre stretch1: 1:2.5,film feed speed adjustedApproaching switch will work for motor driving if there is no film break3.1.5 Auto film attached and cut (1 set)Pneumatic system: SMC3.2 Conveying roller (1 set)capacity: 2000Kgconveying speed: 10-15 m/min (can be incorporated with yours)width of conveying machine: 1500mmheight of conveying machine: 500mmMotor: SEW 0.75kwConveying back selected manuallyDiameter of roller :Φ76mmDistance between roller by roller:119mm conveying chains 10A sprocket gear Z=20Treatment of surface of roller:zinc-coated steel3.3 electrical systemPLC control, counts of wrapping can be set ;Simens touch screen;Photo-eye, automatic sensor height of load;Bearing gear supply;Man-machine interface;Film carriage speed, film feeding speed can be adjusted and film breaking alarm.Automatic and manual operation.Alarm lamp indication
