Bottled water as the most economically valuable commodity in the world, more and more entrepreneurs begin to invest in this industry. The production of mineral water, pure water, drinking water and carbonated water can be achieved by setting up a water bottling plant. LIDLI, as the world’s leading bottling factory manufacturer, can provide you with a full range of automation equipment, plant planning, equipment installation, staff training and other services. Our team will help you start from scratch until you produce your own bottled water.

What is Included:

​

Water treatment & purification system
Before the water is filled into the empty bottle, the raw water needs to be filtered and sterilized by the water treatment system to meet the relevant standards in order to be safe in production. Bottled drinking water can be classified into two categories, mineral water and pure water, which require different water treatment processes. The water treatment equipment for the production of mineral water uses Ultrafiltration technology to filter out the impurities and harmful substances in the water and retain the beneficial minerals in the raw water to the maximum extent, so the mineral water will have a special taste. The preparation of purified water requires  osmosis membrane filtration technology to reduce TDS and electrical conductivity to the range of international standards, so pure water is colorless and tasteless.

​

PET bottle blow molding machine
Used to produce PET empty bottles for water bottling factories, there are two categories: semi-automatic bottle blowing machine and full-automatic PET blow molding machine. Automatic PET bottle blowing machine is the mainstream choice in the market at present, it saves energy consumption, improves production efficiency, and can be connected to water bottling machine through air conveyors.

At present, we can provide a series of bottle blowing equipment for you to choose, from small bottles to large bottles, from low speed to high speed, Lidli has rich experience to deal with your demand.

​

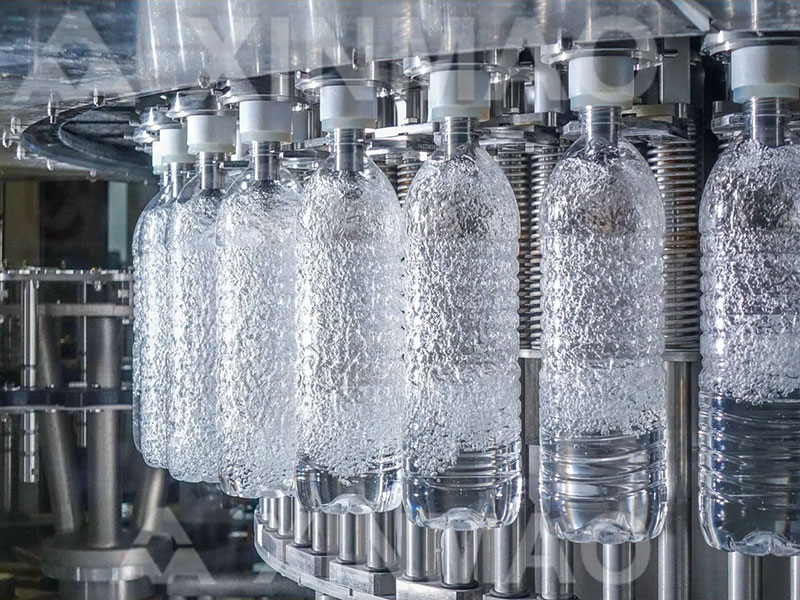

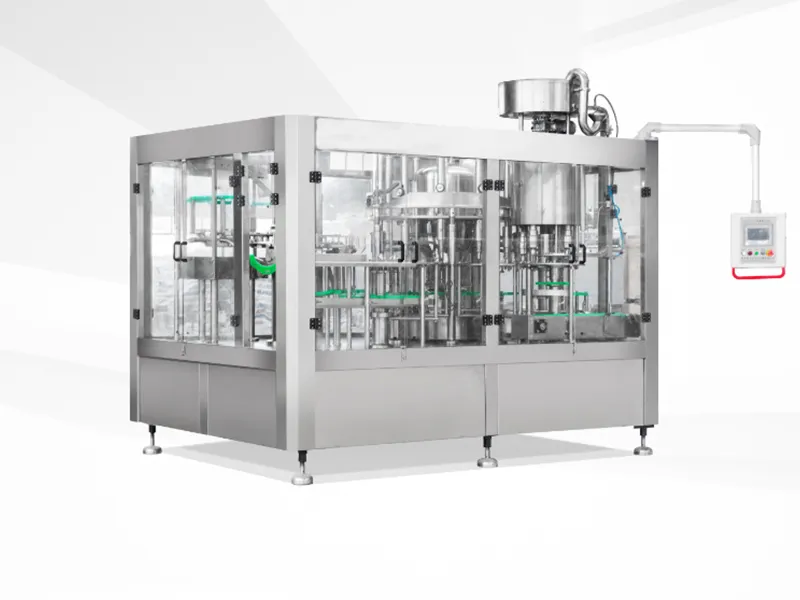

Water bottling machine

This is the core equipment of the whole water bottling plant, which is used to fill the bottles with purified water that meets the production requirements to meet the hygiene and safety standards. High-quality water bottling machines can continuously produce qualified bottled water and help factories to get the maximum benefit.

Machine production capacity from 2000-36000BPH available for you to choose from.

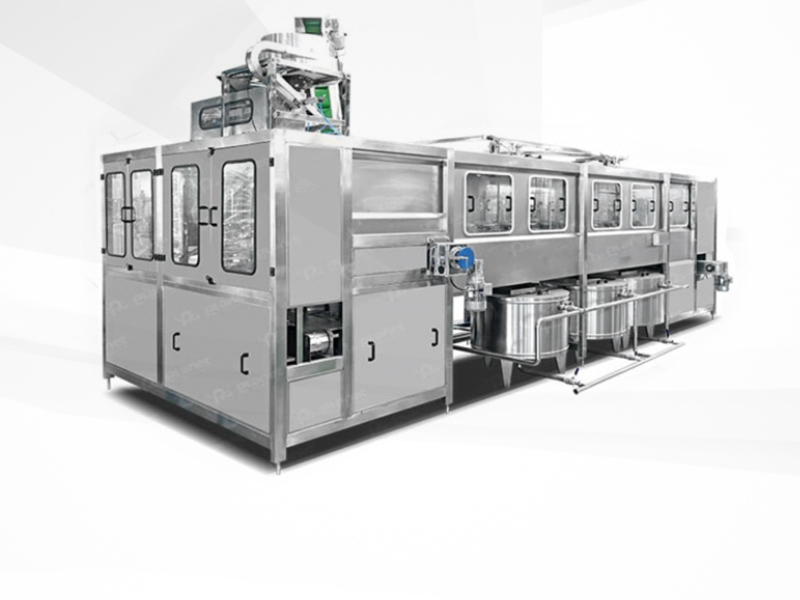

Lidli can provide PET bottle water machine, glass bottling machine, 5 gallon water bottling machine.

​

Bottle labeling machine

The function of the labeling machine is to attach the label to the bottle, and an excellent water bottle label design will bring unexpected benefits to bottled water brands, so more and more water bottling plants begin to pay attention to the design and type selection of labels.

For bottled water factories, there are usually three types of labels to choose from: PVC shrink sleeve label, self-adhesive label, and OPP hot melt gule label. These three labels require three different labeling machines, so before choosing, you can refer to the mainstream products in the market for evaluation.

​

Bottle water packaging machine

Individual bottled water is not suitable for long-distance transportation and storage, so bottled water needs to be packed according to a certain format. At present, the mainstream are PE shrink film packaging and carton packaging, corresponding to two different packaging machineries. Most water bottling plants will choose PE shrink film packaging machine because the cost of packaging material (PE film) is relatively low. A small number of high-end positioning of bottled water or glass bottle water will choose carton packaging machine.

​

Air conveyor for PET bottles

The transmission of PET empty bottles usually adopts air conveyor, which is efficient and fast. The air conveyor can connect the fully automatic bottle blowing machine and the water bottling machine, or connect the bottle unscrambler and the water bottling machine. Reduce the manual handling workload and reduce the use area of the warehouse.

​

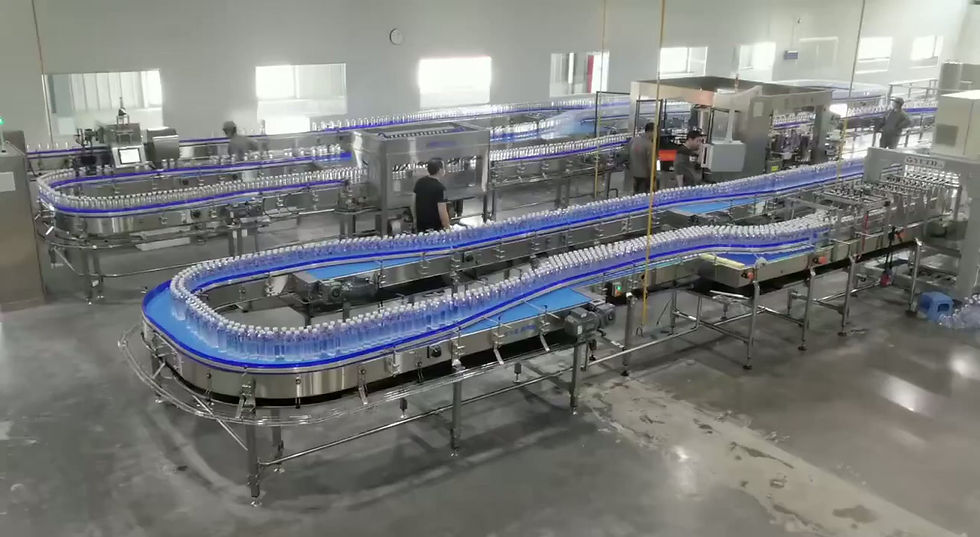

Buffering conveyor for bottle water

After completing the water bottling work, buffering conveyor is needed to connect all the downstream packaging equipment, such as labeling machine, packaging machine, inkjet printer, palletizer, etc.

The layout of buffering conveyor is designed according to the actual situation of the customer factory, and the reasonable design of buffering conveyor can improve the efficiency of the whole production line.
