RO Reverse Osmosis Water Treatment Equipment

RO Reverse Osmosis Water Treatment Equipment

The raw water can be ground water, sea water, tap water or other water source, we choose suitable purify system based on raw water analysis report. The capacity usually from 1T up to 200T per hour.

Description

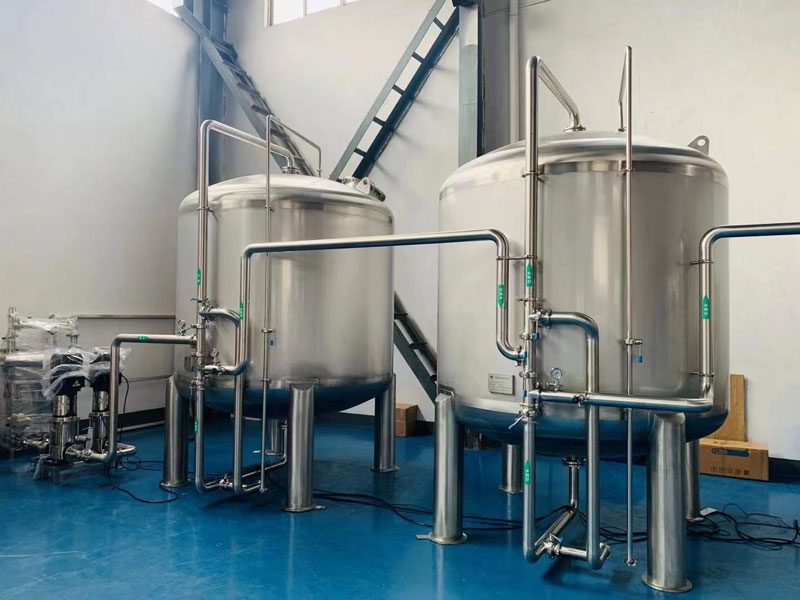

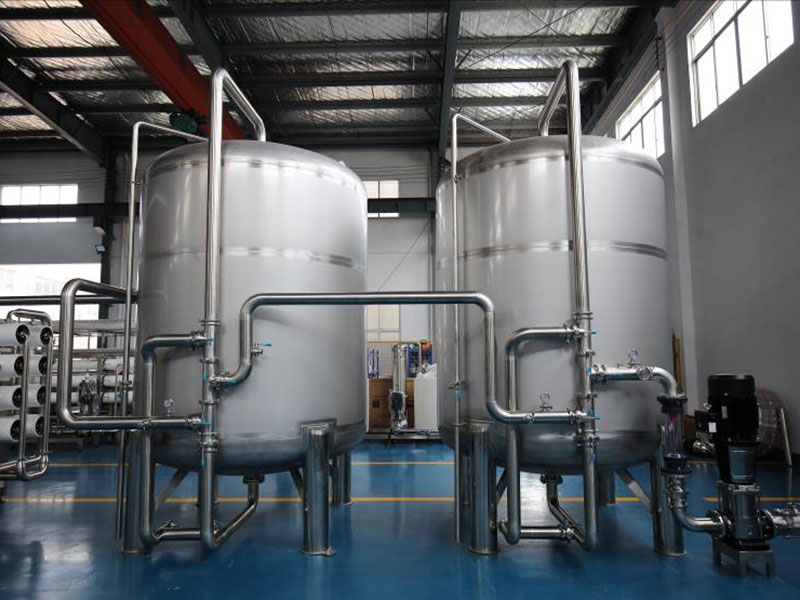

1.Multi-media filter

Principle: pressurized filtration

Application: solid-liquid separation

Style: vertical

Performance: precision filtration, high-efficiency filtration

Applicable objects: water

Applicable object properties: weakly corrosive, low-temperature materials, materials with high hygiene requirements

Filter material type: multi-media

Filter type: vertical

Design pressure: ≤0.6MPa Main material: 304/316L stainless steel

Scope of application: water treatment, pharmaceuticals

Dimensions: to be customized according to production capacity and water quality

The interior can be filled with quartz sand, activated carbon or resin fillers.

Different fillers have the functions of intercepting particulate matter, absorbing residual chlorine, reducing oxygen consumption or reducing water hardness.

Manual control or fully automatic control can be used according to user requirements.

Multi-media filters are widely used in water treatment processes. They are made of sanitary stainless steel and can be used alone, but most of them are used as pre-filtration for deep water treatment (exchange resin, electrodialysis, reverse osmosis, ultrafiltration).

Multi-media filters are commonly used pre-treatment devices for deep water purification. Different filter materials can be added according to process requirements.

The filter material of the multi-media filter should have sufficient chemical stability, and the flow rate and filter layer design must be reasonable to achieve ideal use and cleaning.

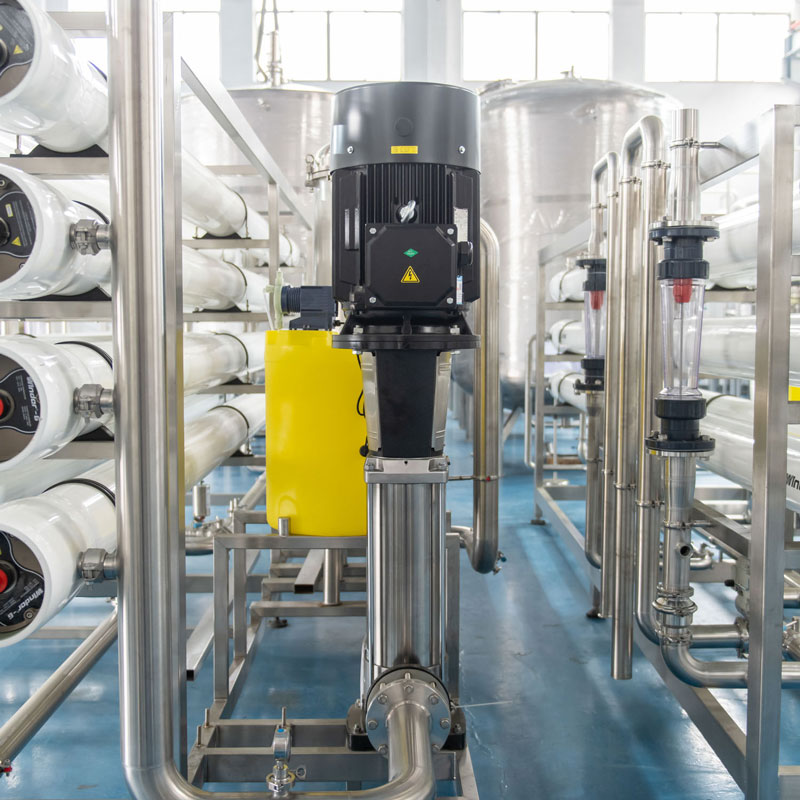

2.Reverse Osmosis System

Principle: Pressurized filtration

Application: Solid-liquid separation

Performance: High-efficiency filtration

Applicable objects: Water

Applicable object properties: Weakly corrosive, low-temperature materials, materials with high sanitation requirements

Membrane type: Reverse osmosis membrane, nanofiltration membrane, rolled ultrafiltration membrane

Design pressure: ≤0.6MPa

Main material: 304/316L stainless steel, fiberglass

Scope of application: Water treatment, pharmaceuticals

Dimensions: To be customized according to production capacity and water quality

Water output: 2-200m³/h

3.Ozone sterilization system

Principle: Mixing pump + pipeline mixing

Purpose: Mix water and ozone

Performance: The mixing effect far exceeds the traditional oxidation tower method

Applicable objects: Water

Applicable object properties: Weakly corrosive, low-temperature materials, materials with high hygiene requirements

Filter type: Vertical

Design pressure: ≤0.4MPa

Main material: 304/316L

Scope of application: Beverages and packaged drinking water

Water output: 2-60m³

This ozone mixing system adopts a mixing method that combines “gas-liquid mixing pump + pipeline mixing” to ensure that the ozone mixing efficiency is greater than 90%, which can effectively reduce system energy consumption and accurate ozone mixing concentration. At the same time, the equipment occupies a small area and has relatively low requirements for the factory building.

4.Stainless steel sanitary water tank

Purpose: buffer

Applicable object: water

Applicable object properties: weakly corrosive, low-temperature materials, materials with high sanitation requirements

Filter type: vertical

Design pressure: ≤0.4MPa

Main material: 304/316L

Scope of application: beverages and packaged drinking water

Capacity: 200L-50 tons

It is mainly composed of the following equipment: Pre-treatment System (multi-medium filter, active carbon filter, micro filter), membrane separation System (Ultrafilter, RO System), sterilization System (UV device, ozone device), and so on.

Applied scope:

Pure water, mineral water, spring water

Water for food and beverage process

Product Parameter

Description	Material	Filter element	Function
Booster pump	SUS304	/	To pump raw water into pre-treatment tanks
Quartz sand filter	SUS304	Coarse sand, Medium sand, Fine sand	To remove metal and large particles in water
Active carbon filter	SUS304	Quartz sand, Active carbon	To absorb color and foreign smell in the water
Precision filter	SUS304	PP film	To filter the water before entering reverse osmosis and protect the RO membrane
Reverse osmosis	SUS304/FRP	8040/4040 membrane	To reduce the salt in water
UV sterilizer	SUS304	UV lamp	To kill the bacteria in water
Pure water storage tank	SUS304	/	To store pure water
Ozone machine	/	Ozone generator	To kill the bacteria in water
