Bottled Water Filling Machine 2000-6000BPH
2000-6000BPH Bottled Water Filling Lines Machine

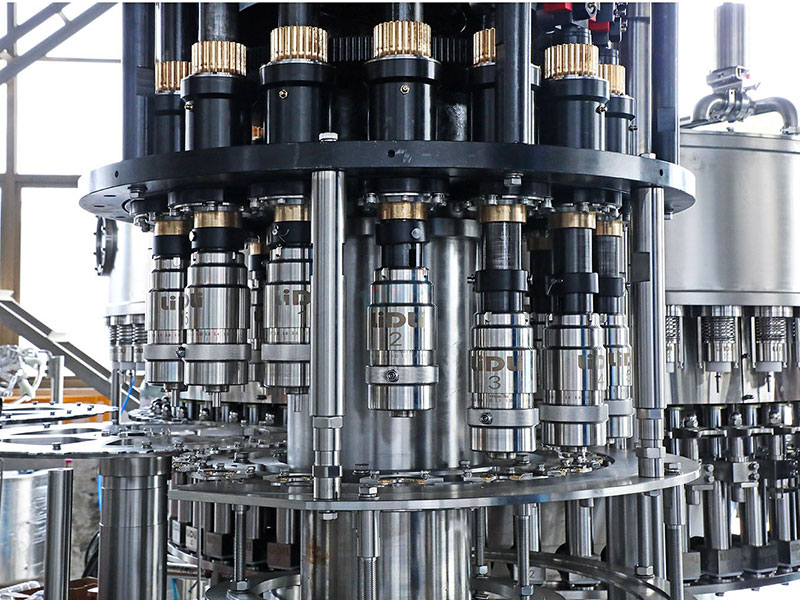

3-in-1 Bottled water filling machine can be used to fill water in bottles made of polyester or glass. The cap could be normal plastic cap, sports cap, aluminum cap and others.Filling medium: mineral water, pure water, drinking water, mountain spring water, etcCapacity: 6000~24000bphBottle size: 200ml to 2L
Description
This machine has a compact structure, perfect control system, is easy to operate, and is highly automated.
Only by changing the star-wheel, the arch board can realize fill bottle shape change.
The parts in contact with the product are made of quality SUS, anti-corrosive, and easy to clean.
Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.
The capping head adopts a constant torque magnetic device to guarantee capping quality and impact cap.
This machine has a high efficient cap arranging system, perfect cap feeding with self-control, and a self-protection device.
The machine adopts a perfect overload protective device that can ensure the operator and machine safety.
The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop, production counting, etc.
The main electric and air-driven components are world-famous brand products.
All control is advanced touch-screen operation and realizes people-computer dialogue operation.
Product Parameter
Model | Production capacity | Rinsing Heads | Filling Heads | Capping Heads |
XGF14-12-5 | 5000BPH (500ml) | 14 | 12 | 5 |
XGF16-16-5 | 8000BPH (500ml) | 16 | 16 | 5 |
XGF24-24-6 | 12000BPH (500ml) | 24 | 24 | 6 |
XGF24-24-8 | 13000BPH (500ml) | 24 | 24 | 8 |
XGF24-24-8K | 15000BPH (500ml) | 24 | 24 | 8 |
XGF32-32-8 | 15000BPH (500ml) | 32 | 32 | 8 |
XGF32-32-10K | 18000BPH (500ml) | 32 | 32 | 10 |
XGF40-40-10 | 18000BPH (500ml) | 40 | 40 | 10 |
XGF60-40-15K | 24000BPH (500ml) | 60 | 40 | 15 |
XGF60-50-12 | 22000BPH (500ml) | 60 | 50 | 12 |
XGF60-60-15 | 24000BPH (500ml) | 60 | 60 | 15 |
XGF72-50-18K | 30000BPH (500ml) | 72 | 50 | 18 |
XGF84-60-20K | 36000BPH (500ml) | 84 | 60 | 20 |
